Hurricane Katrina GIS Analysis
Temporal Landscape Change After Hurricane Katrina.
imgId: 3

Hurricane Katrina project poster showing findings and visualizations from the spatial analysis that was performed.
imgId: 5

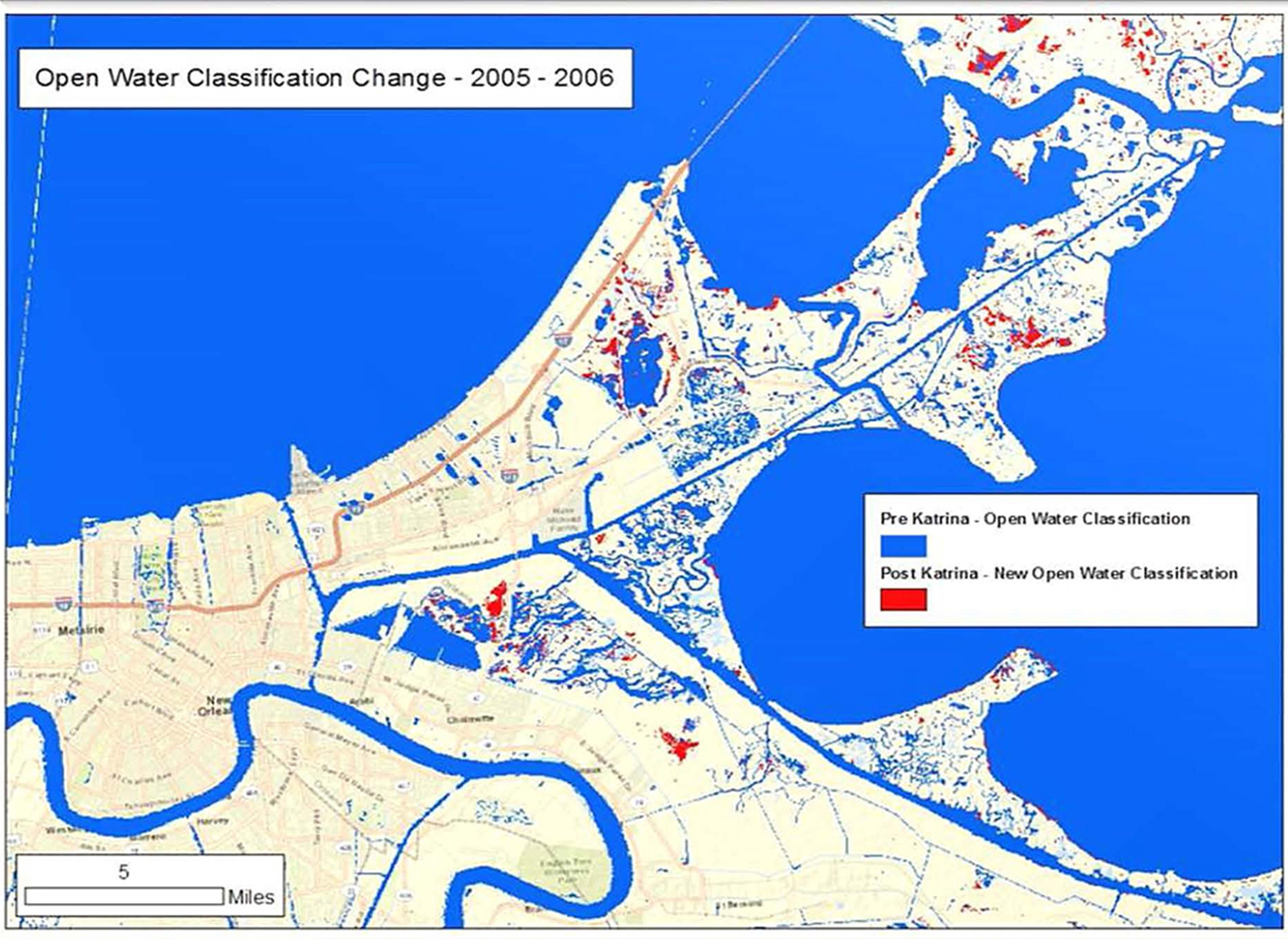

Comparing Open Water classification changes pre Katrina overlayed with new areas classified as Open Water post Katrina.
imgId: 6

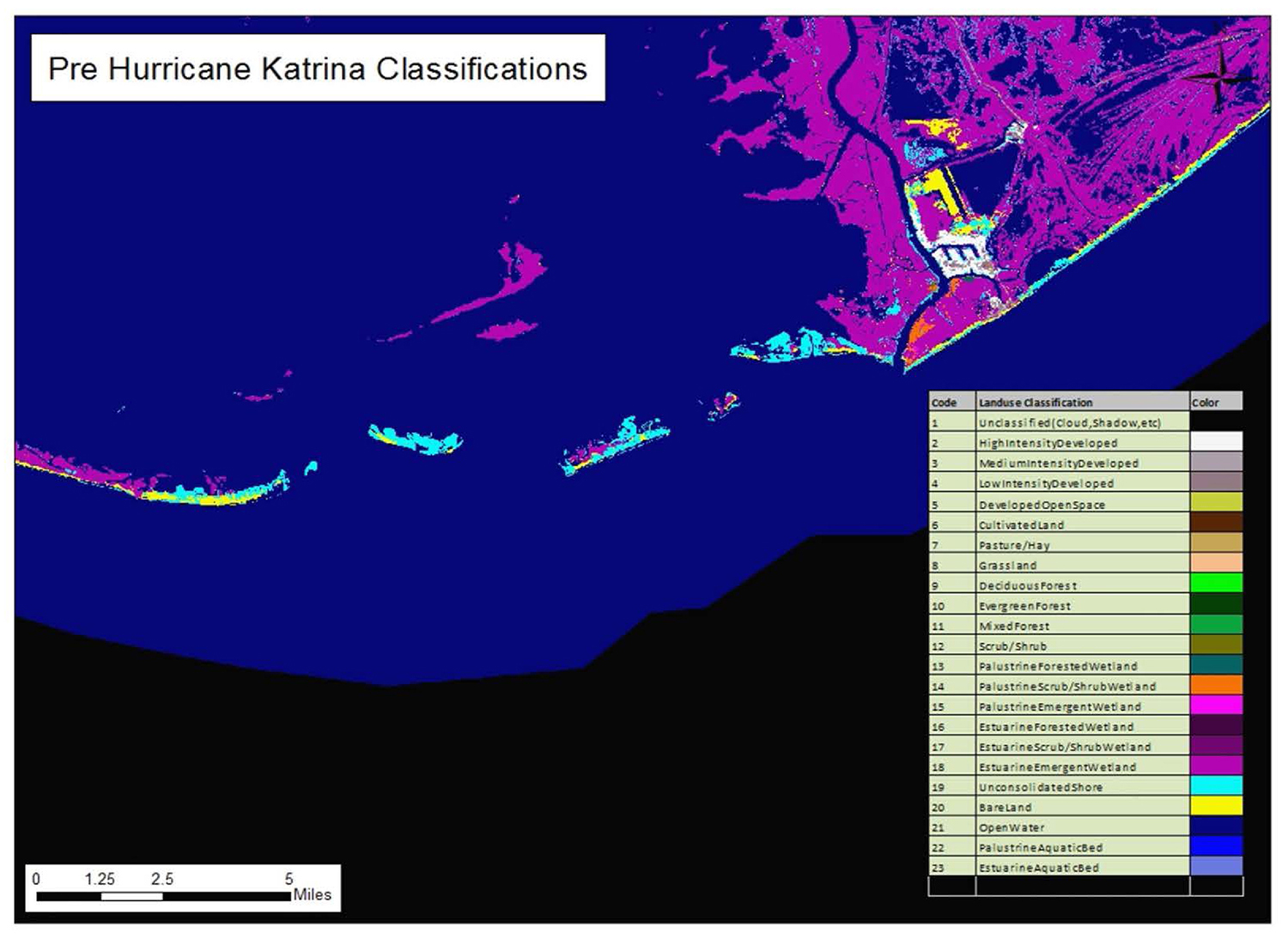

Pre Katrina land classification, the cyan pixels show shoreline and was used with post Katrina data to show soil erosion.
imgId: 7

The Post Katrina classification shows a lot of the shoreline (cyan) wiped away in place of Open Water.
imgId: 8

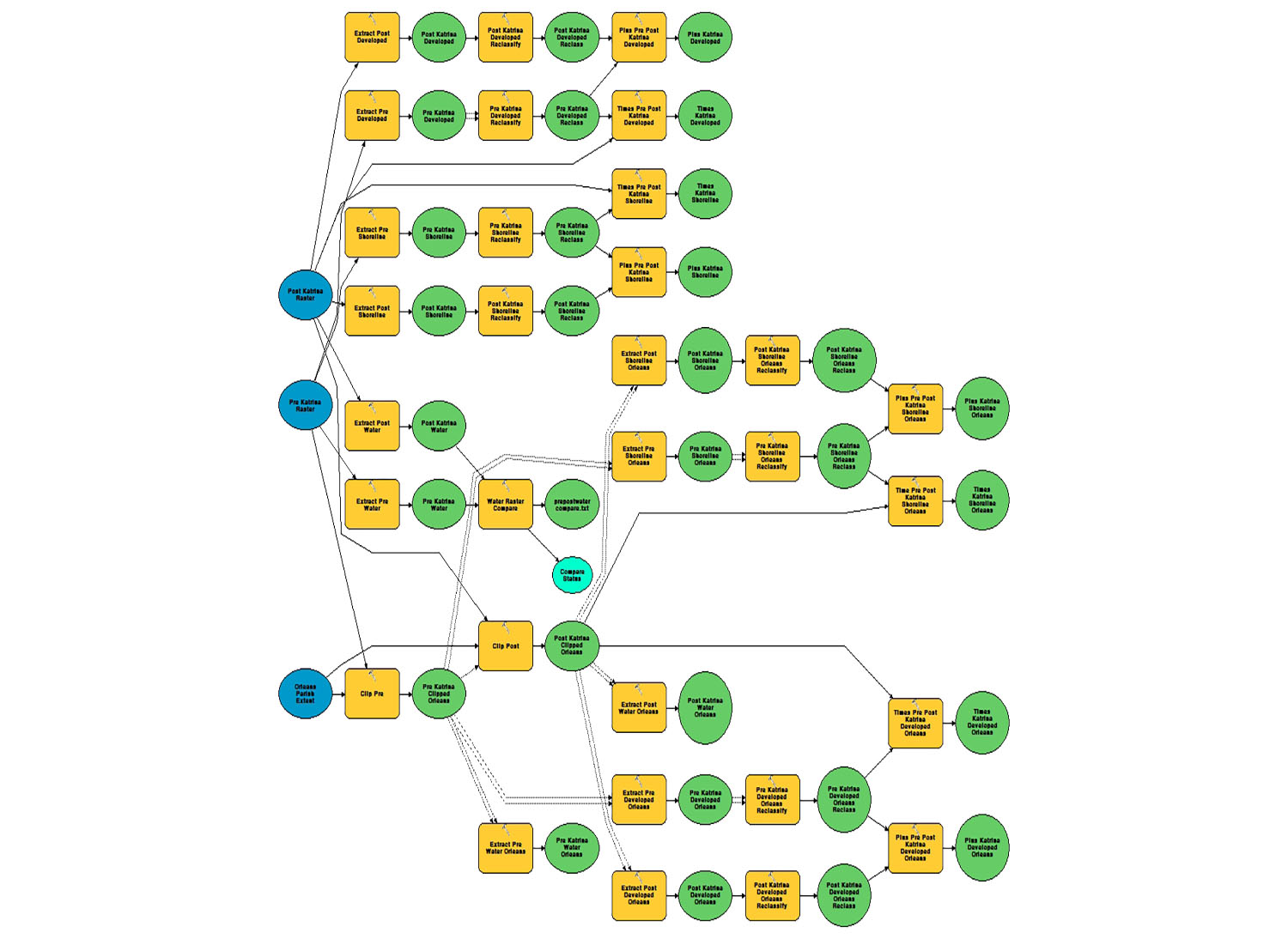

Model built in ESRI ModelBuilder to calculate changes of land classification using the pre and post rasters.
Description
The purpose of this project was to conduct a temporal study that would show how remote sensing technology could be used to assess the impact of Hurricane Katrina and detect growth/rebuilding trends after the hurricane. To prove my hypothesis, I developed three objectives. The first objective was to perform spatial analysis on pre and post Katrina land classification datasets to show how much developed land was reclassified in 2006. The second objective was to perform the same spatial analysis where areas that were classified as “Unconsolidated Shore” (beaches, bars, flats) in 2005, were classified differently in 2006. This would indicate the amount of shoreline erosion as a result of Hurricane Katrina. Lastly, my third objective was to identify growth trends in the population and redevelopment after Hurricane Katrina through a combination of visual interpretation and analysis tools. By accomplishing these three objectives I would be able to calculate areas with high flood concentration, areas of beach erosion and show patterns of rebuilding and growth after Katrina.
Skills Used
- GIS
- Remote Sensing
- ModelBuilder
